Texrise aramid woven fabric has excellent properties such as high strength, high modulus, high temperature resistance, and flame retardant. At the same time, it also has advantages such as good impact resistance, fatigue resistance, shear resistance, corrosion resistance, and good dimensional stability. It is widely used in fields such as individual protection, composite armor, industrial filtration, and building reinforcement.
Taparan® Fabric

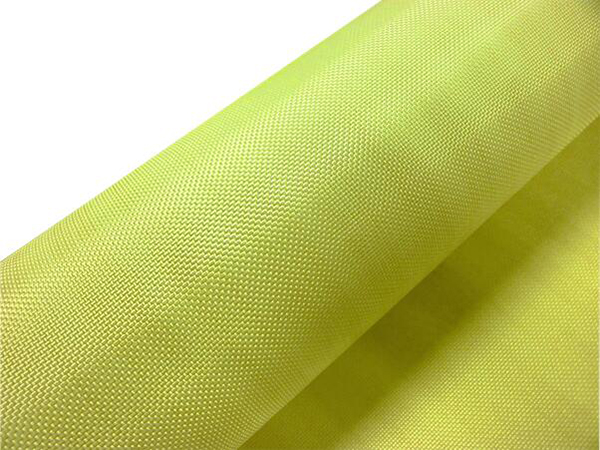

Taparan fabric is made from 100% Taparan® para-aramid continuous filament. It is available in both woven and UD forms.
Besides its good properties of high strength, high modulus, excellent heat & flame resistance, cut resistance, Taparan fabric also has excellent performance in fatigue resistance, impact resistance and size stability. So it is widely used for a number of applications such as personal protection, vehicle armor, building re-enforcement and some other.
Performance indicators of typical para aramid woven fabrics
| Item No. | Fiber Model and Specifications | Structure | Weight g/m2 | Density( No./10cm) | Thickness mm | breaking strength(N/50mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Warp（dtex） | Welt（dtex ） | Warp | Welt | Warp | Welt | ||||
| TH6107 | 629T-1100/667f | 629T-1100/667f | 1/1 Plain | 190 | 85 | 85 | 0.24 | 7600 | 8000 |
| TH6108 | 629T-1100/667f | 629T-1100/667f | 1/1 Plain | 210 | 92 | 92 | 0.28 | 8000 | 8600 |
| TH6301 | 629T-1100/667f | 629T-1100/667f | 2/2 Square | 340 | 150 | 150 | 0.51 | 13000 | 14000 |
| TH5301 | 629-1670/1000f | 629-1670/1000f | 2/2 Square | 420 | 122 | 122 | 0.68 | 14500 | 15000 |
